Monitor and scale apps using your own metrics

In this blog I will guide you on

  • How to enable an application performance monitoring (APM).
  • How to scale a user application based on application metrics with a Horizontal Pod Autoscaler (HPA).
  • How to create an alert based on application metrics and send this alert to an external system.

For the monitoring, I will use the OpenShift Monitoring with a new feature for monitoring your own services.

You can use OpenShift Monitoring for your own services in addition to monitoring the cluster. This way, you do not need to use an additional monitoring solution. And it helps keep monitoring centralized. Additionally, you can extend the access to the metrics of your services beyond cluster administrators. This enables developers and arbitrary users to access these metrics.

In OpenShift version 4.6+ it is GA. See Enabling monitoring for user-defined projects

Enabling Monitoring of Your Own Services in OpenShift 4.6+

As of OpenShift 4.6+, this is done by an update on the configmap within the project openshift-monitoring.

Make sure you are logged in as cluster-admin:

$ cat <<EOF | oc apply -f -
apiVersion: v1
kind: ConfigMap
metadata:
  name: cluster-monitoring-config
  namespace: openshift-monitoring
data:
  config.yaml: |
    enableUserWorkload: true
EOF

Check User Workload Monitoring

After a short time, you can check that the prometheus-user-workload pods were created and running:

$ oc get pod -n openshift-user-workload-monitoring
NAME                                   READY   STATUS    RESTARTS   AGE
prometheus-operator-7bcc9cc899-p8cbr   1/1     Running   0          10h
prometheus-user-workload-0             5/5     Running   1          10h
prometheus-user-workload-1             5/5     Running   1          10h
thanos-ruler-user-workload-0           3/3     Running   0          10h
thanos-ruler-user-workload-1           3/3     Running   0          10h

Create a New Project

Create a new project (for example monitor-demo) and give a normal user (such as developer) admin rights onto the project. Add the new created role (monitor-crd-edit) to the user:

$ oc new-project monitor-demo
You can add applications to this project with the 'new-app' command. For example, try:

    oc new-app django-psql-example

to build a new example application in Python. Or use kubectl to deploy a simple Kubernetes application:

    kubectl create deployment hello-node --image=k8s.gcr.io/serve_hostname

$ oc policy add-role-to-user admin developer -n monitor-demo
clusterrole.rbac.authorization.k8s.io/admin added: "developer"
$ oc policy add-role-to-user monitoring-edit developer -n monitor-demo
clusterrole.rbac.authorization.k8s.io/monitoring-edit added: "developer"

Login as the Normal User

$ oc login -u developer
Authentication required for https://api.rbaumgar.demo.net:6443 (openshift)
Username: developer
Password:
Login successful.

You have one project on this server: "monitor-demo"

Using project "monitor-demo".

Sample Application

Deploy a Sample Application

All modern application development frameworks (like Quarkus) support out-of-the-box metrics features, like the Eclipse Microprofile support in Quarkus, Quarkus – MicroProfile Metrics.

To simplify this document, I am using an existing example. The application is based on an example at GitHub – rbaumgar/monitor-demo-app: Quarkus demo app to show Application Performance Monitoring (APM).

Deploying a sample application monitor-demo-app end expose a route:

$ cat <<EOF |oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: monitor-demo-app
  name: monitor-demo-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: monitor-demo-app
  template:
    metadata:
      labels:
        app: monitor-demo-app
    spec:
      containers:
      - image: quay.io/rbaumgar/monitor-demo-app-jvm
        imagePullPolicy: IfNotPresent
        name: monitor-demo-app
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: monitor-demo-app
  name: monitor-demo-app
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
    name: web
  selector:
    app: monitor-demo-app
  type: ClusterIP
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: monitor-demo-app
  name: monitor-demo-app
spec:
  path: /
  to:
    kind: Service
    name: monitor-demo-app
  port:
    targetPort: web
EOF
deployment.apps/monitor-demo-app created
service/monitor-demo-app created
route.route.openshift.io/monitor-demo-app exposed

If you want to use the Quarkus native image change the image name in the deployment to monitor-demo-app-native.

It is very important that you define labels at the Deployment and Service. Those will be referenced later!

Test Sample Application

Check the router URL with /hello and see the hello message with the pod name. Do this multiple times.

$ export URL=$(oc get route monitor-demo-app -o jsonpath='{.spec.host}')
$ curl $URL/hello
hello from monitor-demo-app monitor-demo-app-78fc685c94-mtm28
$ curl $URL/hello
hello from monitor-demo-app monitor-demo-app-78fc685c94-mtm28
...

Check Available Metrics

See all available metrics /q/metrics and only application specific metrics /q/metrics/application:

$ curl $URL/q/metrics/application
# HELP application_greetings_total How many greetings we've given.
# TYPE application_greetings_total counter
application_greetings_total 3.0
# HELP application_greetings_2xx_total How many 2xx we've given.
# TYPE application_greetings_2xx_total counter
application_greetings_2xx_total 0.0
# HELP application_greetings_5xx_total How many 5xx we've given.
# TYPE application_greetings_5xx_total counter
application_greetings_5xx_total 0.0
# TYPE application_org_example_rbaumgar_PrimeNumberChecker_checksTimer_rate_per_second gauge
application_org_example_rbaumgar_PrimeNumberChecker_checksTimer_rate_per_second 0.0
# TYPE application_org_example_rbaumgar_PrimeNumberChecker_checksTimer_one_min_rate_per_second gauge
...

With application_greetings_total, you will see how often you have called the /hello url. Later we will use this metric.

Setting up Metrics Collection

To use the metrics exposed by your service, you need to configure OpenShift Monitoring to scrape metrics from the /q/metrics endpoint. You can do this using a ServiceMonitor, a custom resource definition (CRD) that specifies how a service should be monitored, or a PodMonitor, a CRD that specifies how a pod should be monitored. The former requires a Service object, while the latter does not, allowing Prometheus to directly scrape metrics from the metrics endpoint exposed by a pod.

$ cat <<EOF | oc apply -f -
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    k8s-app: monitor-demo-monitor
  name: monitor-demo-monitor
spec:
  endpoints:
  - interval: 30s
    port: web
    scheme: http
    path: /q/metrics
  selector:
    matchLabels:
      app: monitor-demo-app
EOF
servicemonitor.monitoring.coreos.com/monitor-demo-monitor created
$ oc get servicemonitor
NAME                   AGE
monitor-demo-monitor   42s

For Quarkus application the dafault path for metrics is /q/metrics, so you have to specify it!

If you are not able to create the ServiceMonitor, you do not have the role montitoring-rules-edit.

The matchLabels must be the same as you defined at the Deployment and Service!

Accessing the Metrics of Your Service

Once you have enabled monitoring your own services, deployed a service, and set up metrics collection for it, you can access the metrics of the service as a cluster administrator, as a developer, or as a user with view permissions for the project.

  1. Access the Prometheus web interface:
    • To access the metrics as a cluster administrator, go to the OpenShift Container Platform web console, switch to the Administrator Perspective, and click Observer → Metrics (openshift 4.8+) or  Monitoring → Metrics.Cluster administrators, when using the Administrator Perspective, have access to all cluster metrics and to custom service metrics from all projects.Only cluster administrators have access to the Alertmanager and Prometheus UIs.
    • To access the metrics as a developer or a user with permissions, go to the OpenShift Container Platform web console, switch to the Developer Perspective, then click Observer → Metrics. In OpenShift 4.3 click on Advanced → Metrics.Developers can only use the Developer Perspective. They can only query metrics from a single project.
  2. Use the PromQL interface to run queries for your services.

Here is an example:

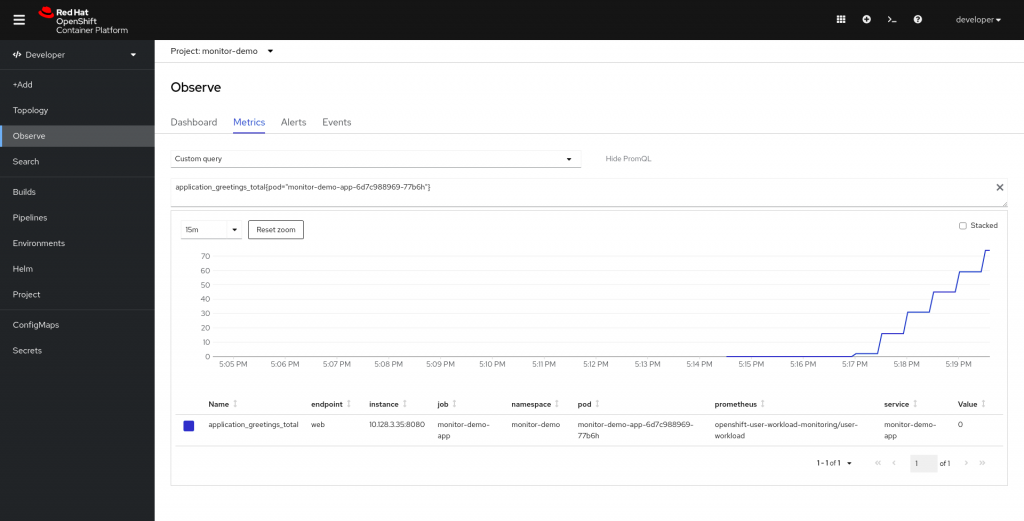

Metrics View

You can generate load onto your application, and so will see more on the graph.

$ for i in {1..1000}; do curl $URL/hello; sleep 10; done

PromQL Example: If you want to see the number of requests per second (rated in two minutes) on the sample service, you can use following query:

sum(rate(application_greetings_total{namespace=”monitor-demo”}[2m]))

sum(rate(application_greetings_total{namespace="monitor-demo"}[2m]))

You can also use the Thanos Querier to display the application metrics. The Thanos Querier enables aggregating and, optionally, deduplicating cluster and user workload metrics under a single, multi-tenant interface.

Thanos Querier can be reached at: https://thanos-querier-openshift-monitoring.apps.your.cluster/graph

If you are just interested in exposing application metrics to the dashboard, you can stop here.

Exposing Custom Application Metrics for Auto-Scaling

You can export application metrics for the Horizontal Pod Autoscaler (HPA).

Prometheus Adapter is a Technology Preview feature only. See Exposing custom application metrics for autoscaling | Monitoring.

Create Service Account

Create a new service account for your Prometheus Adapter in the user namespace (for example monitor-demo):

$ cat <<EOF | oc apply -f -
kind: ServiceAccount
apiVersion: v1
metadata:
  name: custom-metrics-apiserver
EOF
serviceaccount/custom-metrics-apiserver created

Create the Required Cluster Roles

Login again as cluster admin!

Add cluster role:

$ cat <<EOF | oc apply -f -
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: custom-metrics-server-resources
rules:
- apiGroups:
  - custom.metrics.k8s.io
  resources: ["*"]
  verbs: ["*"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: custom-metrics-resource-reader
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  - pods
  - services
  verbs:
  - get
  - list
EOF
clusterrole.rbac.authorization.k8s.io/custom-metrics-server-resources created
clusterrole.rbac.authorization.k8s.io/custom-metrics-resource-reader created

Add the newly created cluster-role bindings for the service account (custom-metrics-apiserver):

$ cat <<EOF | oc apply -f -
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: custom-metrics:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: monitor-demo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: custom-metrics-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: monitor-demo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: custom-metrics-resource-reader
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: custom-metrics-resource-reader
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: monitor-demo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: hpa-controller-custom-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: custom-metrics-server-resources
subjects:
- kind: ServiceAccount
  name: horizontal-pod-autoscaler
  namespace: kube-system
EOF
clusterrolebinding.rbac.authorization.k8s.io/custom-metrics:system:auth-delegator created
rolebinding.rbac.authorization.k8s.io/custom-metrics-auth-reader created
clusterrolebinding.rbac.authorization.k8s.io/custom-metrics-resource-reader created
clusterrolebinding.rbac.authorization.k8s.io/hpa-controller-custom-metrics created

If you are using a different namespace, please don’t forget to replace the namespace (monitor-demo).

Create an APIService

Create an APIService for the custom metrics for Prometheus Adapter:

$ cat <<EOF | oc apply -f -
apiVersion: apiregistration.k8s.io/v1beta1
kind: APIService
metadata:
  name: v1beta1.custom.metrics.k8s.io
spec:
  service:
    name: prometheus-adapter
    namespace: monitor-demo
  group: custom.metrics.k8s.io
  version: v1beta1
  insecureSkipTLSVerify: true
  groupPriorityMinimum: 100
  versionPriority: 100
EOF
apiservice.apiregistration.k8s.io/v1beta1.custom.metrics.k8s.io created

In OpenShift 4.9 you have to specifiy apiregistration.k8s.io/v1!

If you are using a different namespace, please don’t forget to replace the namespace (monitor-demo).

Prometheus Adapter for User Metrics

Show the Prometheus Adapter Image

Show the Prometheus Adapter image, which is currently used by OpenShift Metering. This will be required later!

$ oc get -n openshift-monitoring deploy/prometheus-adapter -o jsonpath="{..image}"
quay.io/openshift-release-dev/ocp-v4.0-art-dev@sha256:a8e3c383b36684a28453a4f5bb65863167bbeb409b91c9c3f5f50e1d5e923dc9

Login as the Normal User

Make sure you stay in the right namespace (monitor-demo)

$ oc login -u developer
Authentication required for https://api.rbaumgar.demo.net:6443 (openshift)
Username: developer
Password:
Login successful.

You have one project on this server: "monitor-demo"

Using project "monitor-demo".

Create a ConfigMap for Prometheus Adapter

Create a ConfigMap for the user metrics for Prometheus Adapter:

$ cat <<EOF | oc apply -f -
apiVersion: v1
kind: ConfigMap
metadata:
  name: adapter-config
data:
  config.yaml: |
    rules:
    - seriesQuery: 'application_greetings_total {namespace!="",pod!=""}'
      resources:
        overrides:
          namespace: {resource: "namespace"}
          pod: {resource: "pod"}
          service: {resource: "service"}
      name:
        matches: "^(.*)_total"
        as: "my_http_requests"
      metricsQuery: 'sum(rate(<<.Series>>{<<.LabelMatchers>>}[2m])) by (<<.GroupBy>>)'
EOF
configmap/adapter-config created

serierQuery is the user metric we want to use expose in our example

my_http_requests is the value of requests per second rated of two minutes.

Create a Service and an APIService Prometheus Adapter

Create a Service and an APIService for the user metrics for Prometheus Adapter:

$ cat <<EOF | oc apply -f -
apiVersion: v1
kind: Service
metadata:
  annotations:
    service.alpha.openshift.io/serving-cert-secret-name: prometheus-adapter-tls
  labels:
    name: prometheus-adapter
  name: prometheus-adapter
spec:
  ports:
  - name: https
    port: 443
    targetPort: 6443
  selector:
    app: prometheus-adapter
  type: ClusterIP
EOF
service/prometheus-adapter created

Create a ConfigMap

Create a ConfigMap for the prometheus-config.yaml for the Prometheus Adapter with insecure-skip-tls-verify: true

$ cat <<EOF | oc apply -f -
kind: ConfigMap
apiVersion: v1
metadata:
  name: prometheus-adapter-prometheus-config
data:
  prometheus-config.yaml: |
    apiVersion: v1
    clusters:
    - cluster:
        server: https://prometheus-user-workload.openshift-user-workload-monitoring:9091
        insecure-skip-tls-verify: true
      name: prometheus-k8s
    contexts:
    - context:
        cluster: prometheus-k8s
        user: prometheus-k8s
      name: prometheus-k8s
    current-context: prometheus-k8s
    kind: Config
    preferences: {}
    users:
    - name: prometheus-k8s
      user:
        tokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
EOF
configmap/prometheus-adapter-prometheus-config created

Configuration for Deploying the Prometheus Adapter

Replace the image name with the correct name you got! (spec.template.spec.containers.image)

$ cat <<EOF | oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: prometheus-adapter
  name: prometheus-adapter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus-adapter
  template:
    metadata:
      labels:
        app: prometheus-adapter
      name: prometheus-adapter
    spec:
      serviceAccountName: custom-metrics-apiserver
      containers:
      - name: prometheus-adapter
        image: openshift-release-dev/ocp-v4.6-art-dev
        args:
        - --prometheus-auth-config=/etc/prometheus-config/prometheus-config.yaml
        - --secure-port=6443
        - --tls-cert-file=/var/run/serving-cert/tls.crt
        - --tls-private-key-file=/var/run/serving-cert/tls.key
        - --logtostderr=true
        - --prometheus-url=https://prometheus-user-workload.openshift-user-workload-monitoring:9091
        - --metrics-relist-interval=1m
        - --v=4
        - --config=/etc/adapter/config.yaml
        ports:
        - containerPort: 6443
        volumeMounts:
        - name: volume-serving-cert
          mountPath: /var/run/serving-cert
          readOnly: true
        - name: config
          mountPath: /etc/adapter/
          readOnly: true
        - name: prometheus-adapter-prometheus-config
          mountPath: /etc/prometheus-config
        - name: tmp-vol
          mountPath: /tmp
      volumes:
      - name: volume-serving-cert
        secret:
          secretName: prometheus-adapter-tls
      - name: config
        configMap:
          name: adapter-config
      - name: prometheus-adapter-prometheus-config
        configMap:
          name: prometheus-adapter-prometheus-config
          defaultMode: 420
      - name: tmp-vol
        emptyDir: {}
EOF
deployment.apps/prometheus-adapter created

Check the running Prometheus Adapter:

$ oc get pod -l app=prometheus-adapter
NAME                                  READY   STATUS    RESTARTS   AGE
prometheus-adapter-7b69fd947c-6ht7p   1/1     Running   0          10h

Check the log of the Prometheus Adapter:

$ oc logs deployment/prometheus-adapter|more
I0417 13:23:31.213322       1 adapter.go:93] successfully using in-cluster auth
I0417 13:23:31.836631       1 secure_serving.go:116] Serving securely on [::]:6443
I0417 13:23:32.030695       1 wrap.go:47] GET /apis/custom.metrics.k8s.io/v1beta1: (467.349µs) 200 [Go-http-client/2.0 10.129.0.1:40778]
...

In OpenShift 4.9 you have to change the prometheus-url to “https://thanos-querier.openshift-monitoring:9091‘” otherwise the Prometheus adapter get a 404 on “/api/v1/series?match[]…”. (Prometheus API does not work)

Check Custom Metrics

Now if everything works fine, we can expose the Custom Metrics provided by the Prometheus adapter and defined in ConfigMap, which in our case is my_http_requests:

# per service
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta1/namespaces/monitor-demo/services/monitor-demo-app/my_http_requests |jq
{
  "kind": "MetricValueList",
  "...

apiVersion": "custom.metrics.k8s.io/v1beta1",
  "metadata": {
    "selfLink": "/apis/custom.metrics.k8s.io/v1beta1/namespaces/monitor-demo/services/monitor-demo-app/my_http_requests"
  },
  "items": [
    {
      "describedObject": {
        "kind": "Service",
        "namespace": "monitor-demo",
        "name": "monitor-demo-app",
        "apiVersion": "/v1"
      },
      "metricName": "my_http_requests",
      "timestamp": "2020-04-17T13:31:28Z",
      "value": "4044m",
      "selector": null
    }
  ]
}

# per pod
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta1/namespaces/monitor-demo/pods/monitor-demo-app-fd65c7894-krjsp/my_http_requests |jq
{
  "kind": "MetricValueList",
  "apiVersion": "custom.metrics.k8s.io/v1beta1",
  "metadata": {
    "selfLink": "/apis/custom.metrics.k8s.io/v1beta1/namespaces/monitor-demo/pods/monitor-demo-app-fd65c7894-krjsp/my_http_requests"
  },
  "items": [
    {
      "describedObject": {
        "kind": "Pod",
        "namespace": "monitor-demo",
        "name": "monitor-demo-app-fd65c7894-krjsp",
        "apiVersion": "/v1"
      },
      "metricName": "my_http_requests",
      "timestamp": "2020-04-17T13:27:59Z",
      "value": "1622m",
      "selector": null
    }
  ]
}

# for all pods per namespace
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta1/namespaces/monitor-demo/pods//my_http_requests |jq
...

Since we have set up Prometheus Adapter to collect the user metrics, we no have pods/my_http_requestspods, which measures requests per second over a two minute period.

Create Horizontal Pod Autoscaler

Now we are at the last step of the setup. Create a Horizontal Pod Autoscaler (HPA) to scale the sample application depended on the load, scaled by the user metrics my_http_requests.

$ cat <<EOF | oc apply -f -
apiVersion: autoscaling/v2beta2
kind: HorizontalPodAutoscaler
metadata:
  name: monitor-demo-hpa
spec:
  scaleTargetRef:
    kind: Deployment
    name: monitor-demo-app
    apiVersion: apps/v1
  minReplicas: 1
  maxReplicas: 5
  metrics:
    - type: Pods
      pods:
        metric:
          name: my_http_requests
        target:
          type: AverageValue
          # target 1000 milli-requests per second = 1 req/second
          averageValue: 1
EOF
horizontalpodautoscaler.autoscaling/monitor-demo-hpa created

Now it is time do the final test!

Run on one screen the load generator. Something like:

$ for i in {1..1000}; do curl $URL/hello >/dev/null 2>&1; sleep .10; done

On another screen, we will check the number of pods:

$ for i in {1..20}; do oc get pod -l app=monitor-demo-app; sleep 30; done
NAME                               READY   STATUS    RESTARTS   AGE
monitor-demo-app-fd65c7894-krjsp   1/1     Running   3          6d1h
NAME                               READY   STATUS    RESTARTS   AGE
monitor-demo-app-fd65c7894-krjsp   1/1     Running   3          6d1h
NAME                               READY   STATUS    RESTARTS   AGE
monitor-demo-app-fd65c7894-667gg   1/1     Running   0          17s
monitor-demo-app-fd65c7894-f8fps   1/1     Running   0          17s
monitor-demo-app-fd65c7894-krjsp   1/1     Running   3          6d1h
NAME                               READY   STATUS    RESTARTS   AGE
monitor-demo-app-fd65c7894-5lxd9   1/1     Running   0          18s
monitor-demo-app-fd65c7894-667gg   1/1     Running   0          48s
monitor-demo-app-fd65c7894-f8fps   1/1     Running   0          48s
monitor-demo-app-fd65c7894-krjsp   1/1     Running   3          6d1h
...

We see that the number of pods is increasing automatically.

We can also check the HPA.

Under TARGETS we see the actual value of my_http_requests:

$ for i in {1..12}; do oc get hpa; sleep 30; done
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   0/1       1         4         1          56s
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   955m/1    1         4         1          86s
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   2433m/1   1         4         3          116s
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   3633m/1   1         4         4          2m27s
...
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   0/1       1         4         3          10m
NAME              REFERENCE                     TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
monior-demo-hpa   Deployment/monitor-demo-app   0/1       1         4         1          11m

Perfect! Everything works as expected!

Congratulations!

Oh, one more thing …

Scale Down

If scale down takes longer than expected, this Kubernetes documentation explains why

Configure Cooldown Period

The dynamic nature of the metrics being evaluated by the HPA may at times lead to scaling events in quick succession without a period between those scaling events. This leads to thrashing where the number of replicas fluctuates frequently and is not desirable.

To get around this and specify a cool down period, a best practice is to configure the –horizontal-pod-autoscaler-downscale-stabilization flag passed to the kube-controller-manager. This flag has a default value of five minutes and specifies the duration HPA waits after a downscale event before initiating another downscale operation.

Alert Rules

Create Alert Rule

$ cat <<EOF | oc apply -f -
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: example-500-alert
  labels:
    openshift.io/prometheus-rule-evaluation-scope: leaf-prometheus
spec:
  groups:
    - name: example
      rules:
        - alert: Error500Alert
          expr: >-
            increase(application_greetings_5xx_total{job="monitor-demo-app"}         [1m]) > 2
EOF
prometheusrules.monitoring.coreos.com/example-500-alert created

This configuration creates an alerting rule named example-500-alert. The alerting rule fires an alert when the counter of 5xx requests increases by more the 2 in one minute.

If that label (leaf-prometheus) is present, the alerting rule is deployed on the Prometheus instance in the openshift-user-workload-monitoring project. If the label is not present, the alerting rule is deployed to Thanos Ruler.

The cluster-admin can view all alert rules in the Administrator perspective, navigate to Monitoring → Alerting → Alerting Rules.

The user can view the rules of one project in the Developer perspective, navigate to Monitoring → Alerts page in the OpenShift Container Platform web console.

Sending Alerts to External Systems

In OpenShift Container Platform 4.6+, firing alerts can be viewed in the Alerting UI. Alerts are not configured by default to be sent to any notification systems. You can configure OpenShift Container Platform to send alerts to the following receiver types:

  • PagerDuty
  • Webhook
  • Email
  • Slack

In this demo we will send the alert to our sample application (webhook).

Configuring alert receivers

You can configure alert receivers as a user with the cluster-admin role.

Print the currently active Alertmanager configuration into file alertmanager.yaml:

$ oc -n openshift-monitoring get secret alertmanager-main --template='{{ index .data "alertmanager.yaml" }}' | base64 --decode > alertmanager.yaml

Edit the configuration in alertmanager.yaml:

Add a receiver with the name monitor-app and the webhook_config.

Add a route with the namespace where your demo application is running.

receivers:
  - name: ...
  - name: monitor-app
      webhook_configs:
      - url: >-
http://monitor-demo-app-monitor-demo.apps.rbaumgar.demo.net/hello/alert-hook
route:
...
  routes:
    - match: ...
    - receiver: monitor-app
      match:
        namespace: monitor-demo

Apply the new configuration in the file:

$ oc -n openshift-monitoring create secret generic alertmanager-main --from-file=alertmanager.yaml --dry-run=client -o=yaml |  oc -n openshift-monitoring replace secret --filename=-

To change the Alertmanager configuration from the OpenShift Container Platform web console:

Navigate to the Administration → Cluster Settings → Global Configuration → Alertmanager of the web console. Create a Receiver.

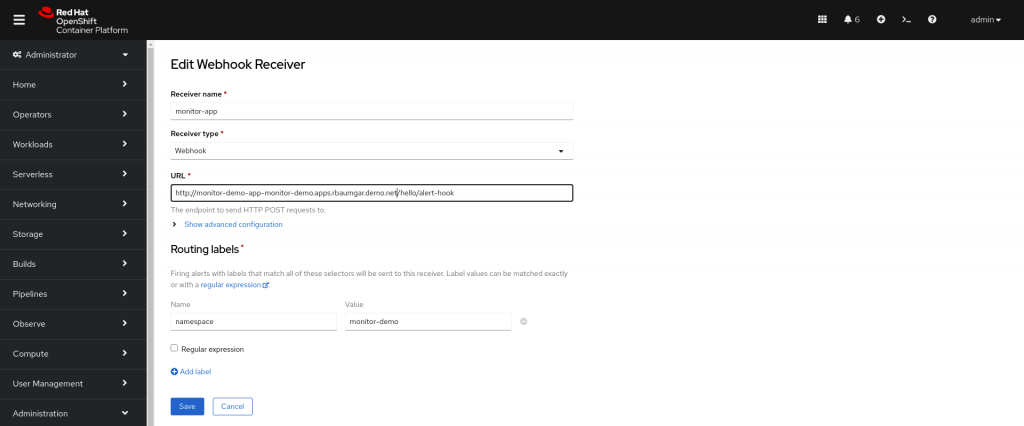

Edit Webhook

More Details Sending notifications to external systems

Test Alert

Call the 5xx url of the demo application twice and check the log of the demo application.

$ export URL=$(oc get route monitor-demo-app -o jsonpath='{.spec.host}')
$ curl $URL/hello/5xx
Got 5xx Response
$ curl $URL/hello/5xx
Got 5xx Response
$ oc logs deployment/monitor-demo-app -f
exec java -Dquarkus.http.host=0.0.0.0 -Djava.util.logging.manager=org.jboss.logmanager.LogManager -XX:+ExitOnOutOfMemoryError -cp . -jar /deployments/quarkus-run.jar
__  ____  __  _____   ___  __ ____  ______
 --/ __ / / / / _ | / _ / //_/ / / / __/
 -/ /_/ / /_/ / __ |/ , _/ ,< / /_/ /
--________/_/ |_/_/|_/_/|_|____/___/
2022-01-14 16:14:25,474 INFO  [io.quarkus] (main) monitor-demo-app-micro 1.1-SNAPSHOT on JVM (powered by Quarkus 2.6.2.Final) started in 2.817s. Listening on: http://0.0.0.0:8080
2022-01-14 16:14:25,522 INFO  [io.quarkus] (main) Profile prod activated.
2022-01-14 16:14:25,523 INFO  [io.quarkus] (main) Installed features: [cdi, kubernetes, resteasy, smallrye-context-propagation, smallrye-metrics, vertx]
Alert received:
{
  "receiver": "monitor-app",
  "status": "firing",
  "alerts": [
    {
      "status": "firing",
      "labels": {
        "alertname": "Error500Alert",
        "endpoint": "web",
        "instance": "10.128.3.35:8080",
        "job": "monitor-demo-app",
        "namespace": "monitor-demo",
        "pod": "monitor-demo-app-6d7c988969-77b6h",
        "prometheus": "openshift-user-workload-monitoring/user-workload",
        "service": "monitor-demo-app"
      },
      "annotations": {},
      "startsAt": "2022-01-18T06:57:29.667Z",
      "endsAt": "0001-01-01T00:00:00Z",
      "generatorURL": "http://prometheus-user-workload-1:9090/graph?g0.expr=increase%28application_greetings_5xx_total%7Bjob%3D%22monitor-demo-app%22%2Cnamespace%3D%22monitor-demo%22%7D%5B1m%5D%29+%3E+2&g0.tab=1",
      "fingerprint": "ddda7b9f7f011e4c"
    }
  ],
  "groupLabels": {
    "namespace": "monitor-demo"
  },
  "commonLabels": {
    "alertname": "Error500Alert",
    "endpoint": "web",
    "instance": "10.128.3.35:8080",
    "job": "monitor-demo-app",
    "namespace": "monitor-demo",
    "pod": "monitor-demo-app-6d7c988969-77b6h",
    "prometheus": "openshift-user-workload-monitoring/user-workload",
    "service": "monitor-demo-app"
  },
  "commonAnnotations": {},
  "externalURL": "https://alertmanager-main-openshift-monitoring.apps.rbaumgar.demo.net",
  "version": "4",
  "groupKey": "{}/{namespace="monitor-demo"}:{namespace="monitor-demo"}",
  "truncatedAlerts": 0
}
Alert received: {
  "receiver": "monitor-app",
  "status": "resolved",
  "alerts": [
    {
      "status": "resolved",
      "labels": {
        "alertname": "Error500Alert",
        "endpoint": "web",
        "instance": "10.128.3.35:8080",
        "job": "monitor-demo-app",
        "namespace": "monitor-demo",
        "pod": "monitor-demo-app-6d7c988969-77b6h",
        "prometheus": "openshift-user-workload-monitoring/user-workload",
        "service": "monitor-demo-app"
      },
      "annotations": {},
      "startsAt": "2022-01-18T06:57:29.667Z",
      "endsAt": "2022-01-18T06:57:59.667Z",
      "generatorURL": "http://prometheus-user-workload-1:9090/graph?g0.expr=increase%28application_greetings_5xx_total%7Bjob%3D%22monitor-demo-app%22%2Cnamespace%3D%22monitor-demo%22%7D%5B1m%5D%29+%3E+2&g0.tab=1",
      "fingerprint": "ddda7b9f7f011e4c"
    }
  ],
  "groupLabels": {
    "namespace": "monitor-demo"
  },
  "commonLabels": {
    "alertname": "Error500Alert",
    "endpoint": "web",
    "instance": "10.128.3.35:8080",
    "job": "monitor-demo-app",
    "namespace": "monitor-demo",
    "pod": "monitor-demo-app-6d7c988969-77b6h",
    "prometheus": "openshift-user-workload-monitoring/user-workload",
    "service": "monitor-demo-app"
  },
  "commonAnnotations": {},
  "externalURL": "https://alertmanager-main-openshift-monitoring.apps.rbaumgar.demo.net",
  "version": "4",
  "groupKey": "{}/{namespace="monitor-demo"}:{namespace="monitor-demo"}",
  "truncatedAlerts": 0
}

You will find in the application log two alters received. One when the alert is fired an one minute later when the alert is resolved.

Congratulation! Done!

Remove this Demo

$ oc delete prometheusrules.monitoring.coreos.com/example-500-alert
$ oc delete deployment.apps/prometheus-adapter
$ oc delete apiservice.apiregistration.k8s.io/v1beta1.custom.metrics.k8s.io
$ oc delete clusterrolebinding.rbac.authorization.k8s.io/hpa-controller-custom-metrics
$ oc delete clusterrolebinding.rbac.authorization.k8s.io/custom-metrics-resource-reader
$ oc delete rolebinding.rbac.authorization.k8s.io/custom-metrics-auth-reader
$ oc delete clusterrolebinding.rbac.authorization.k8s.io/custom-metrics:system:auth-delegator
$ oc delete clusterrole.rbac.authorization.k8s.io/custom-metrics-resource-reader
$ oc delete clusterrole.rbac.authorization.k8s.io/custom-metrics-server-resources
$ oc delete servicemonitor.monitoring.coreos.com/monitor-demo-monitor
$ oc delete ClusterRole/monitor-crd-edit
$ oc edit configmap/cluster-monitoring-config -n openshift-monitoring
$ oc get pod -n openshift-user-workload-monitoring
$ oc delete project monitor-demo

The alter receiver has to be removed from the OpenShift web console!

This document:

monitor-demo-app/application-monitoring.md at master · rbaumgar/monitor-demo-app · GitHub

4 replies on “Monitor and scale apps using your own metrics”

From the OpenShift 4.8 release notes:
“Support for HPA custom metrics adapter based on Prometheus is removed
This release removes the Prometheus Adapter, which was a Technology Preview feature.”

David,
you are right. This has been done, because OpenShift will support KEDA in future. Red Hat has stopped to do specific tests on custom metrics adapter, so no longer supported.
HPA is default feature of Kubernetes and in K8s 1.23 it is marked as stable, see https://kubernetes.io/docs/tasks/run-application/horizontal-pod-autoscale/#scaling-on-custom-metrics

I have tested and it is working without any issues in OpenShift 4.8 and 4.9

HI,
Thank you for the wonderful article.
I understand that “/q/metrics/application” returns the total number of http requests for one pod. So, the case that you have multiple pods, does HPA decide whether or not to scaleout only by monitoring the number of http requests for any one pod allocated by the clusterip (via /q/metrics/application), not the number of http requests for the entire demo-app?

Mike,

the HPA decide to scale by the summary of all pods. my_http_requests is defined as the sum(application_greetings_total) from all pods in the namespace!

Leave a Reply

%d bloggers like this:
