Using OpenTracing and Jaeger with Your Own Services/Application

May 30, 2022

OpenTracingIn this blog I will guide you on

  • How to use OpenTracing with a Quarkus application.
  • How to display your OpenTracing information on Jaeger UI.

In this blog I will use distributed tracing to instrument my services to gather insights into my service architecture. I am using distributed tracing for monitoring, network profiling, and troubleshooting the interaction between components in modern, cloud-native, microservices-based applications.

Using distributed tracing lets you perform the following functions:

  • Monitor distributed transactions
  • Optimize performance and latency
  • Perform root cause analysis

Red Hat OpenShift distributed tracing consists of two components:

Red Hat OpenShift distributed tracing platform – This component is based on the open source Jaeger project.
Red Hat OpenShift distributed tracing data collection – This component is based on the open source OpenTelemetry project.

This document is based on OpenShift 4.9. See Distributed tracing release notes.

OpenShift distributed tracing platform Operator is based on Jaeger 1.28.

OpenShift distributed tracing data collection Operator based on OpenTelemetry 0.33. (Technology Preview)

OpenTelemetry is not used in this blog.

OpenTracing and Jaeger

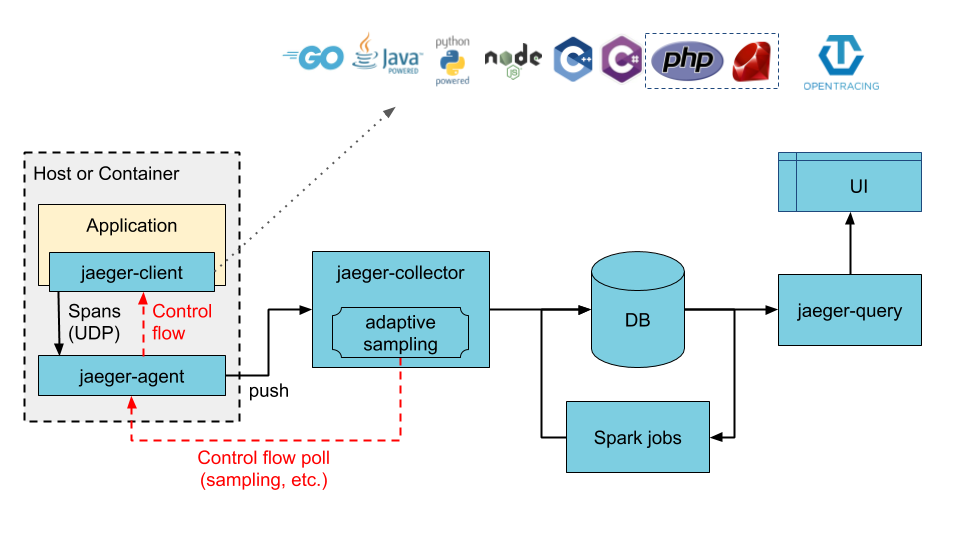

In the the following diagram I will show you how the flow will be between your application and Jaeger.

Jaeger Architecture

To make the demo simpler I am using the AllInOne image from Jaeger. This will install collector, query and Jaeger UI in a single pod, using in-memory storage by default.

More details can be found

Enabling Distributed Tracing

A cluster administrator has to enable the Distributed Tracing Platform operator once.

As of OpenShift 4.9, this is be done easily done by using the OperatorHub on the OpenShift console. See Installing the Red Hat OpenShift distributed tracing platform Operator.

OperatorHub

In this demo we do not install the OpenShift Elasticsearch Operator, because we us only in-memory tracing – no perstistance.

Make sure you are logged in as cluster-admin:

After a short time, you can check that the operator pod is created and running and the CRD is created:

$ oc get pod -n openshift-operators|grep jaeger
jaeger-operator-bc65549bd-hch9v                              1/1     Running   0             10d
$ oc get crd jaegers.jaegertracing.io
NAME                       CREATED AT
jaegers.jaegertracing.io   2021-12-08T15:51:29Z

Create a New Project

Create a new project (for example jaeger-demo) and give a normal user (such as developer) admin rights onto the project:

$ oc new-project jaeger-demo
Now using project "jaeger-demo" on server "https://api.yourserver:6443".

You can add applications to this project with the 'new-app' command. For example, try:

    oc new-app rails-postgresql-example

to build a new example application in Ruby. Or use kubectl to deploy a simple Kubernetes application:

    kubectl create deployment hello-node --image=k8s.gcr.io/serve_hostname
$ oc policy add-role-to-user admin developer -n jaeger-demo
clusterrole.rbac.authorization.k8s.io/admin added: "developer"

Login as the Normal User

$ oc login -u developer
Authentication required for https://api.yourserver:6443 (openshift)
Username: developer
Password:
Login successful.

You have one project on this server: "jaeger-demo"

Using project "jaeger-demo".

Create Jaeger

Create a simple Jaeger instance with the name my-jager

$ cat <<EOF |oc apply -f -
apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
  name: my-jaeger
spec: {}
EOF
jaeger.jaegertracing.io/my-jaeger created

When the Jaeger instance is up and running you can check the service and route.

$ oc get svc
NAME                           TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                  AGE
my-jaeger-agent                ClusterIP   None             <none>        5775/UDP,5778/TCP,6831/UDP,6832/UDP      73m
my-jaeger-collector            ClusterIP   172.30.127.95    <none>        9411/TCP,14250/TCP,14267/TCP,14268/TCP   73m
my-jaeger-collector-headless   ClusterIP   None             <none>        9411/TCP,14250/TCP,14267/TCP,14268/TCP   73m
my-jaeger-query                ClusterIP   172.30.243.178   <none>        443/TCP,16685/TCP                        73m
$ oc get route my-jaeger -o jsonpath='{.spec.host}'
my-jaeger-jaeger-demo.apps.rbaumgar.demo.net

Open a new browser window and go to the route url and login with your OpenShift login (developer).

Jaeger homepage)

Jaeger UI

Sample Application

Deploy a Sample Application

All modern application development frameworks (like Quarkus) supports OpenTracin features, Quarkus – USING OPENTRACING.

To simplify this document, I am using an existing example. The application is based on an example at GitHub – rbaumgar/otracing-demo-app: Quarkus demo app to show OpenTracing with Jaeger.

Deploying a sample application otracing-demo-app end expose a route:

$ cat <<EOF |oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: otracing-demo-app
  name: otracing-demo-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: otracing-demo-app
  template:
    metadata:
      labels:
        app: otracing-demo-app
    spec:
      containers:
      - image: quay.io/rbaumgar/otracing-demo-app-jvm
        imagePullPolicy: IfNotPresent
        name: otracing-demo-app
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: otracing-demo-app
  name: otracing-demo-app
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
    name: web
  selector:
    app: otracing-demo-app
  type: ClusterIP
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: otracing-demo-app
  name: otracing-demo-app
spec:
  path: /
  to:
    kind: Service
    name: otracing-demo-app
  port:
    targetPort: web
EOF
deployment.apps/otracing-demo-app created
service/otracing-demo-app created
route.route.openshift.io/otracing-demo-app exposed

You can add an environment variable with the name JAEGER_ENDPOINT if you need to specify a different url for the Jaeger Collector. Default: http://my-jaeger-collector-headless:14268/api/traces

Test Sample Application

Check the router url with /hello and see the hello message with the pod name. Do this multiple times.

$ export URL=$(oc get route otracing-demo-app -o jsonpath='{.spec.host}')
$ curl $URL/hello
hello
$ curl $URL/sayHello/demo1
hello: demo1
$ curl $URL/sayRemote/demo2
hello: demo2 from http://otracing-demo-app-jaeger-demo.apps.rbaumgar.demo.net/
...

Go to Jager URL.
Reload by pressing F5.
Under Service select my-service.
Find Traces…

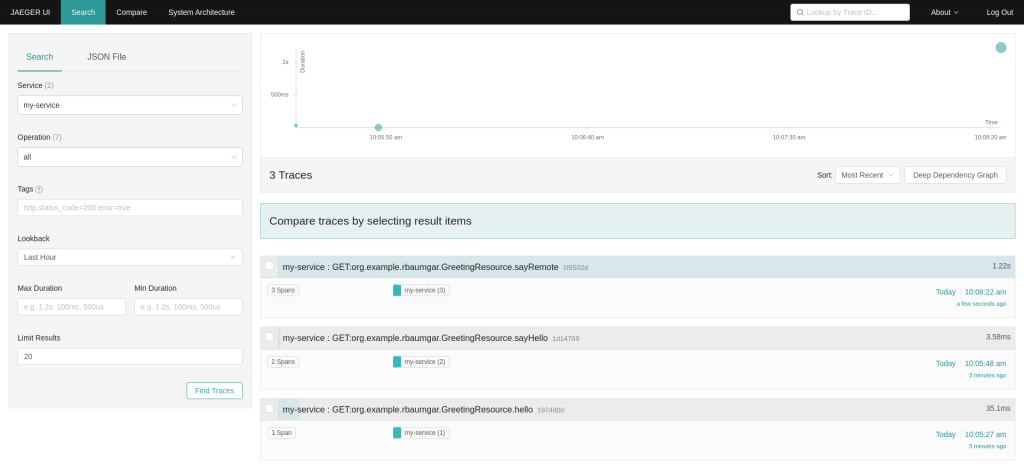

Jaeger Find

The service name is specified in the application.properties (quarkus.application.name) of the demo app.
The url of the Jaeger collector is specified in the application.properties (quarkus.jaeger.endpoint=http://my-jaeger-collector-headless:14268/api/traces).

Open one trace entry and expand it to get all the details.

Jaeger Result

Done!

If you want more details on how the OpenTracing is done in Quarkus go to the Github example at GitHub – rbaumgar/otracing-demo-app: Quarkus demo app to show OpenTracing with Jaeger.

Remove this Demo

$ oc delete deployment,svc,route otracing-demo-app
$ oc delete jaeger my-jaeger
$ oc delete project jaeger-demo

This document:

Github: rbaumgar/otracing-demo-app
